| Quantity: | |
|---|---|
GKA132NRTG 640W
GAMKO
GAMKO N TOPCon 182MM SOLAR CELL MONO SOLAR PANEL

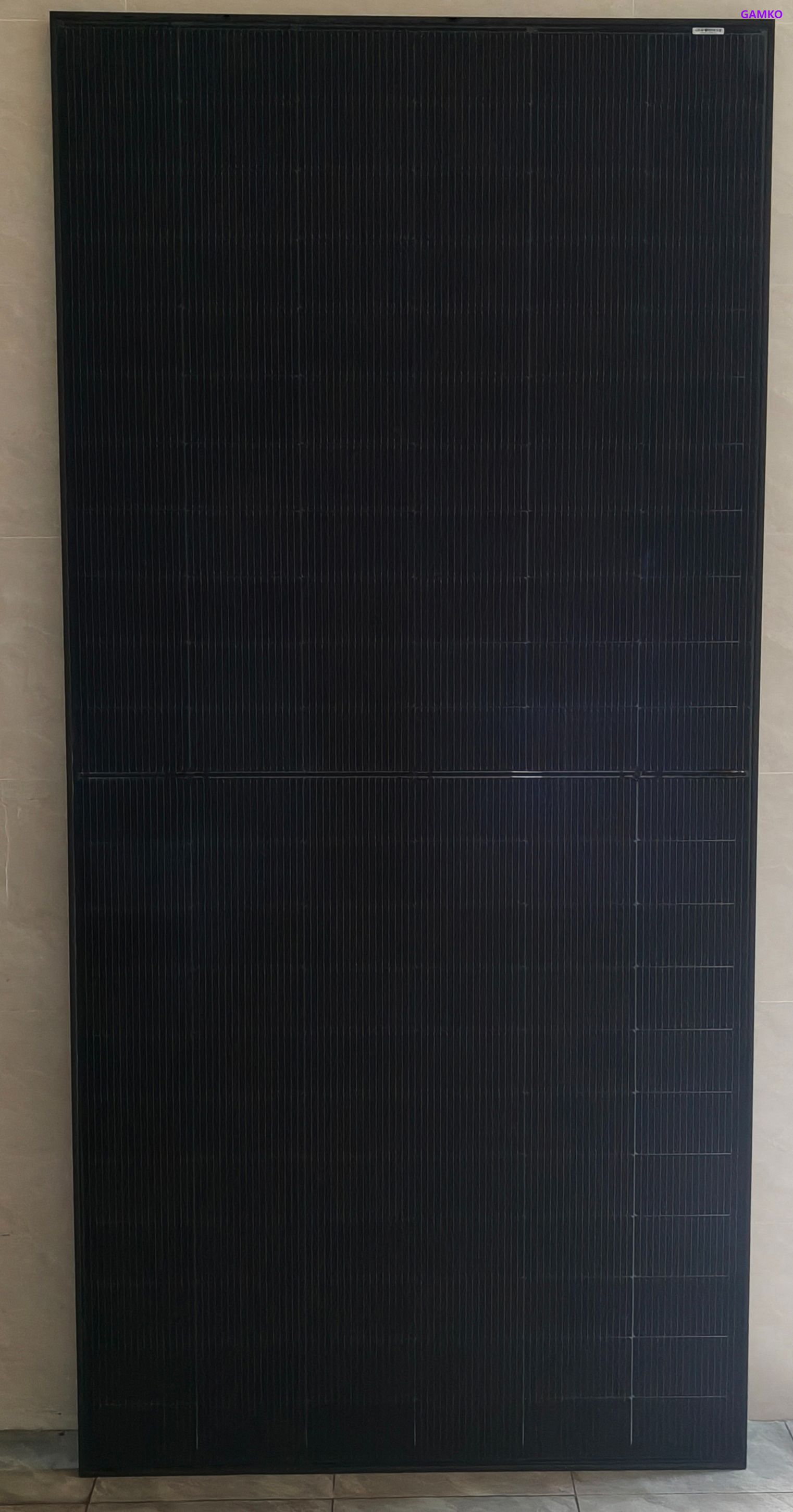

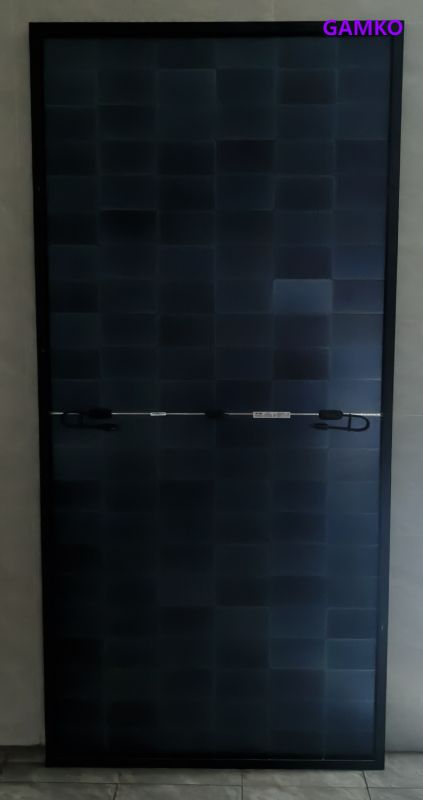

This solar panel has three versions for you to choose, stardard, black and bifacial.
KEY FEATURE
* High Efficiency:
Higher module conversion efficiency(up to 23.69%) benefit from N-TOPCon cell technology.
* PID Resistance:
Excellent Anti-PID performance guarantee limited power degradation for mass production.
* Low-light Performance:
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
* Severe Weather Resilience:
Certified to withstand:wind load(2400 Pascal) and snow load(5400 Pascal).
* Durability Aganist Extreme Environmental Conditions:
High salt mist and ammonia resistance certified.
GAMKO SOLAR MODULE BOM
CELLS: TIER 1 BRANDS SOLAR CELLS
TEMPERED GLASS: ULTRA-CLEAR
EVA:TRANSPARENCY>93%
BACKSHEETS: REFLECTIVITY>80%, TPT
JUNCTION BOX: IP68 MAX 30A
SILICON GEL: UV,AGING- RESISTANT
FRAME: ANODIZED ALUMINUM 6005-T5
GAMKO QUALITY CONTROL
2 EL testing avoid cells cracking of each solar module.
2 Power flash testing avoid false welding and insufficient power of each module.

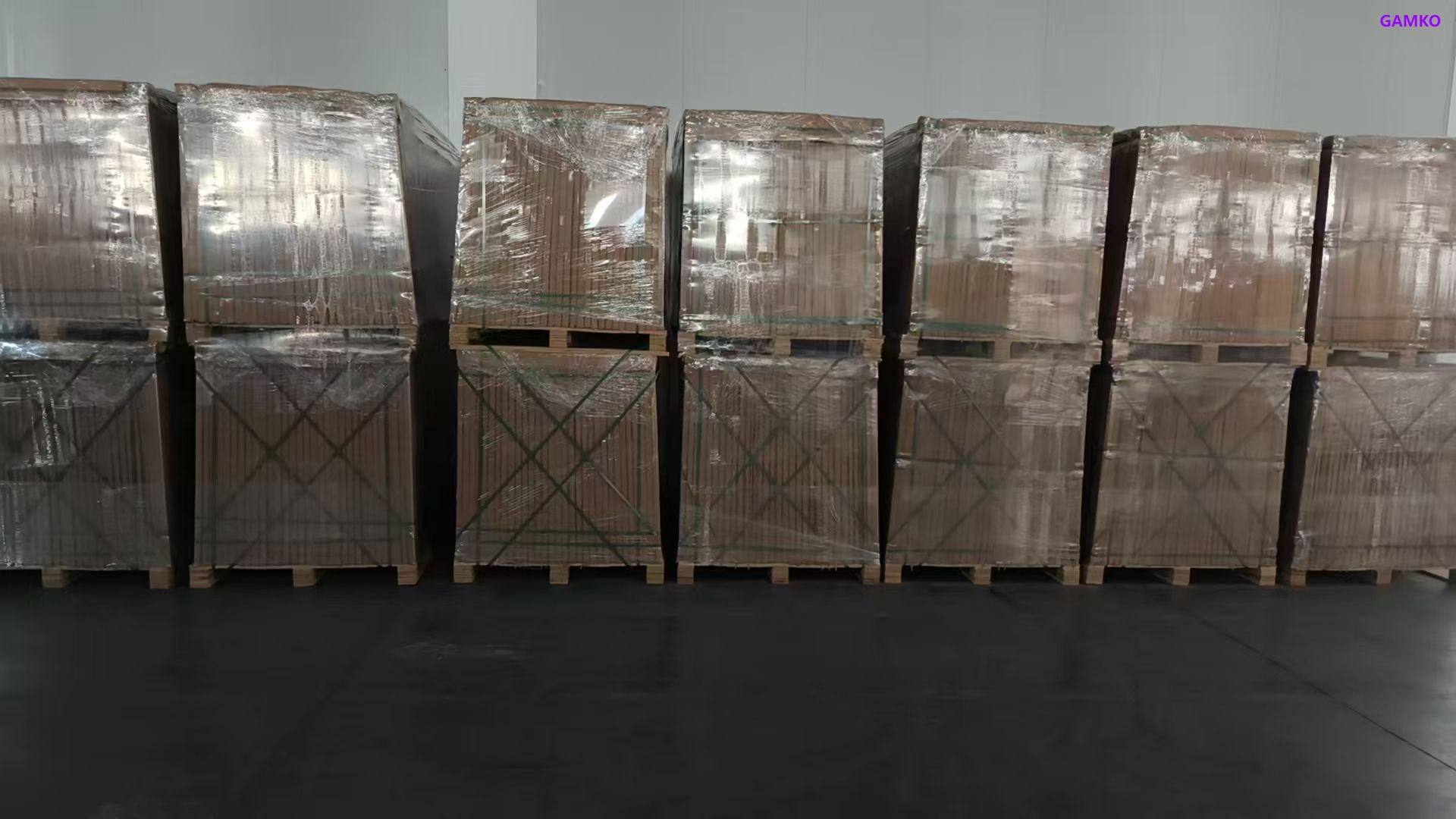

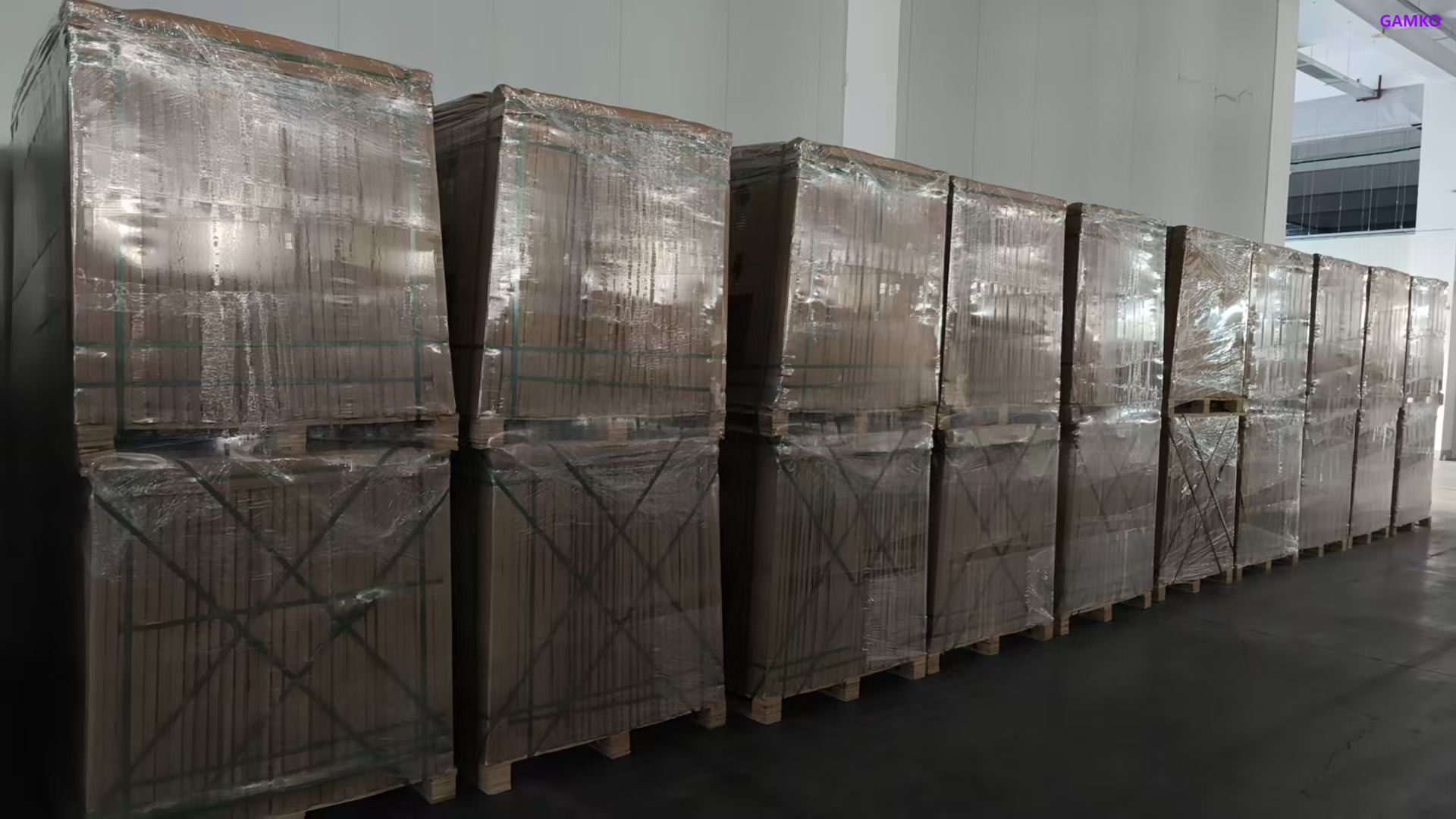

Packing tightly with angle protection avoid transportation broken.
Gamko official Warranty cover all Gamko solar module 30 years.

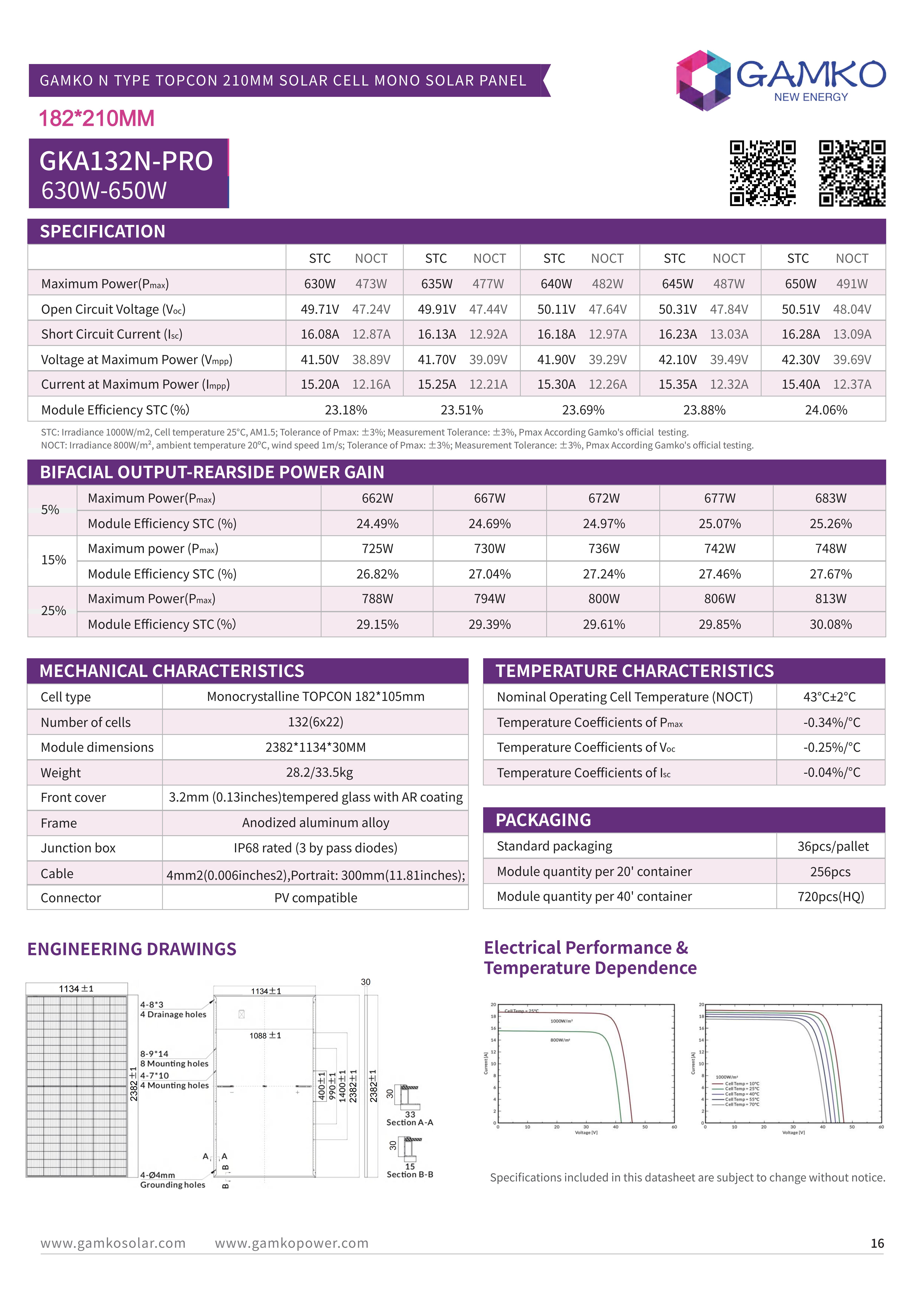

SPECIFICATION
| Maximum Power(Pmax) | 640W |
| Open Circuit Voltage (Voc) | 50.11V |
| Short Circuit Current (Isc) | 16.18A |
| Voltage at Maximum Power (Vmpp) | 41.90V |
| Current at Maximum Power (Impp) | 15.30A |
| Module Efficiency STC(%) | 23.69% |
MECHANICAL CHARACTERISTICS
| Cell type | Monocrystalline TOPCON182*105mm |
| Number of cells | 132(6x22) |
| Module dimensions | 2382*1134*30MM |
| Weight | 28.2KG |
| Front cover | 3.2mm (0.13inches)tempered glass with AR coating |
| Frame | Anodized aluminum alloy |
| Junction box | IP68 rated (3 by pass diodes) |
| Cable | 4mm2(0.006inches2),Portrait: 300mm(11.81inches); |
| Connector | PV compatible |
PACKING
| Standard packaging | 36pcs/pallet |
| Module quantity per 20' container | 256pcs |
| Module quantity per 40' container | 720pcs(HQ) |
MOQ:3pallets (108pcs)
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2017,sell to South America(18.00%),Western Europe(13.00%),Africa(12.00%),Eastern Asia(10.00%),Eastern Europe(8.00%),Mid East(7.00%),Oceania(6.00%),Central America(5.00%),North America(5.00%),Southeast Asia(5.00%),South Asia(3.00%),Southern Europe(3.00%),Domestic Market(3.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
solar panel,solar system, solar air conditoner, inverter, controller, cable, MC4, etc.
4. Why should you buy from us not from other suppliers?
Gamko solar is a professional solar module manufacturer with a 10-year experience in production and quality control since 2008. Gamko modules and SOLIS inverter have been certified by ETL, TUV, KTL, JET, JPEC, MCS, CEC, CGC, ISO etc. TRY GAMKO NOW!
5. What services can we provide?
Acepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Escrow.
GAMKO N TOPCon 182MM SOLAR CELL MONO SOLAR PANEL
This solar panel has three versions for you to choose, stardard, black and bifacial.
KEY FEATURE
* High Efficiency:
Higher module conversion efficiency(up to 23.69%) benefit from N-TOPCon cell technology.
* PID Resistance:
Excellent Anti-PID performance guarantee limited power degradation for mass production.
* Low-light Performance:
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.
* Severe Weather Resilience:
Certified to withstand:wind load(2400 Pascal) and snow load(5400 Pascal).
* Durability Aganist Extreme Environmental Conditions:
High salt mist and ammonia resistance certified.
GAMKO SOLAR MODULE BOM
CELLS: TIER 1 BRANDS SOLAR CELLS
TEMPERED GLASS: ULTRA-CLEAR
EVA:TRANSPARENCY>93%
BACKSHEETS: REFLECTIVITY>80%, TPT
JUNCTION BOX: IP68 MAX 30A
SILICON GEL: UV,AGING- RESISTANT
FRAME: ANODIZED ALUMINUM 6005-T5
GAMKO QUALITY CONTROL
2 EL testing avoid cells cracking of each solar module.
2 Power flash testing avoid false welding and insufficient power of each module.
Packing tightly with angle protection avoid transportation broken.
Gamko official Warranty cover all Gamko solar module 30 years.
SPECIFICATION
| Maximum Power(Pmax) | 640W |
| Open Circuit Voltage (Voc) | 50.11V |
| Short Circuit Current (Isc) | 16.18A |
| Voltage at Maximum Power (Vmpp) | 41.90V |
| Current at Maximum Power (Impp) | 15.30A |
| Module Efficiency STC(%) | 23.69% |
MECHANICAL CHARACTERISTICS
| Cell type | Monocrystalline TOPCON182*105mm |
| Number of cells | 132(6x22) |
| Module dimensions | 2382*1134*30MM |
| Weight | 28.2KG |
| Front cover | 3.2mm (0.13inches)tempered glass with AR coating |
| Frame | Anodized aluminum alloy |
| Junction box | IP68 rated (3 by pass diodes) |
| Cable | 4mm2(0.006inches2),Portrait: 300mm(11.81inches); |
| Connector | PV compatible |
PACKING
| Standard packaging | 36pcs/pallet |
| Module quantity per 20' container | 256pcs |
| Module quantity per 40' container | 720pcs(HQ) |
MOQ:3pallets (108pcs)
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2017,sell to South America(18.00%),Western Europe(13.00%),Africa(12.00%),Eastern Asia(10.00%),Eastern Europe(8.00%),Mid East(7.00%),Oceania(6.00%),Central America(5.00%),North America(5.00%),Southeast Asia(5.00%),South Asia(3.00%),Southern Europe(3.00%),Domestic Market(3.00%),Northern Europe(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3.What can you buy from us?
solar panel,solar system, solar air conditoner, inverter, controller, cable, MC4, etc.
4. Why should you buy from us not from other suppliers?
Gamko solar is a professional solar module manufacturer with a 10-year experience in production and quality control since 2008. Gamko modules and SOLIS inverter have been certified by ETL, TUV, KTL, JET, JPEC, MCS, CEC, CGC, ISO etc. TRY GAMKO NOW!
5. What services can we provide?
Acepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union,Escrow.
