| Quantity: | |
|---|---|
GKA80W
Datasheet
Data Sheet：
Cell | Mono 182*182mm |
No. of cells | 32（4×8） |
Rated Maximum Power(Pmax) | 100W |
Maximum Efficiency | 23% |
Junction Box | IP68 |
Max Power Voltage(Vmp) | 17.26V |
Max Power Current(Imp) | 5.79A |
Connectors | MC4 |
Dimension | 650*770*25mm |
Pcs per pallet | 126PCS |
Cable | 600MM |
For further details please see the data sheet
GAMKO

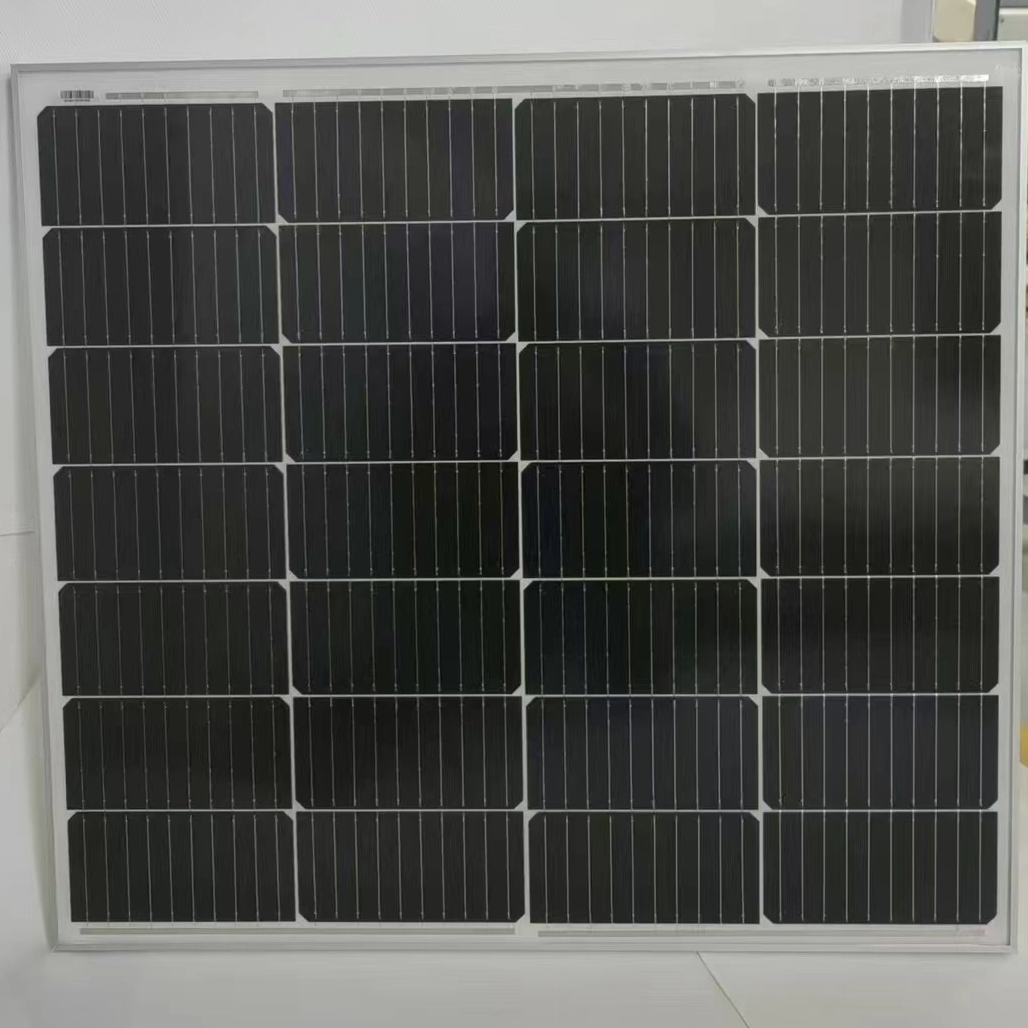

型号MODEL:GKA80 SOLAR PANEL 80W太阳能板
功率PMAX: 80W （210R-1/4 2*16 CABLE 2.5MM2 600MM+MC4)
TEST CONDITION: 1000W/m2 /25°C
工作电压VMP:19.32V 工作电流IMP:4.14A
开路电压VOC:23.16V 短路电流ISC:4.34A
最大系统电压MAX SYSTEM VOLTAGE:1000V
产品尺寸重量DIMENSION&WEIGHT:900*400*25MM/3.8KG
包装尺寸重量PACKAGE DIMENSION&WEIGHT: 920*420*35MM/4.1KG
关键优势ADVANTAGES
（1）12V系统电压，弱光性能好，雨天阴天可工作
（2）TIER 1电池片保障稳定输出
（3）功率稳定输出，每日工作12小时以上，回本周期低至一年
（4）重量轻，便于携带运输，适用于大部分汽车后座及后备箱
（5）严格盐雾测试，适应极端气温及环境
（6）IP67级别防水，防火等级A,安全可靠无风险
（7）内置高档芯片及二极管，不怕遮挡，自动短路保护模块
（8）MC4接头兼容所有型号逆变器及其他品牌太阳能板
（9）外置安装孔兼容所有型号支架及安装模式
（10）钢化玻璃耐撞击，阳极氧化铝边框，TUV认证材料保障轻松使用30年
(1) 12V system voltage, low-light performance, work rainy and cloudy days.
(2) TIER 1 solar cells ensure stable output.
(3) Stable output, works more than 12hs /day, payback period as low as one year.
(4) Light weight, easy to carry , suitable for most car back seats and trunks.
(5) Strict salt spray test, adaptable to extreme temperatures and environments.
(6) IP67 waterproof rating, fireproof class A, safe and reliable work.
(7) Built-in high-tech chips and diodes, work under shadow,automatic short-circuit protection module.
(8) MC4 connectors compatible with all models of inverters and solar panels
(9) installation holes compatible with all types of brackets and installation modes.
(10) Tempered glass,anodized aluminum frame, TUV certified materials guarantee use more than 30 years.
认证及质保 CERTIFICATIONS&WARRANTY
TUV, CE, ROHS, FCC, INMETRO, EC REP, JPEA, IEC61215, IEC61730...
15年使用质保15 YEARS USE WARRANTY
30年寿命质保30 YEARS LIFE WARRANTY
80W Monocrystalline Solar Panel is the key component to a system when going solar Off -Grid system. These panels are relatively compact and are a breeze to set up. Whether you are going camping in the mountains or taking a trip to the beach, this panel can be a great start to your off-grid system! This panel has several uses including marine, dry camp, RVS and other off-grid applications.
Where can the 80W solar panels be used?
Applications:
1. **Smart Home**
- **Scenario**: Used in smart bulbs, smart sockets, smart switches and other devices.
- **Function**: Provide stable power management, support remote control and automated operation.
2. **Portable Devices**
- **Scenario**: Used in mobile power supplies, portable speakers, drones, etc.
- **Function**: Efficient energy conversion, extended device life, suitable for outdoor use.
3. **Industrial Control**
- **Scenario**: Used in industrial equipment such as PLC, sensors, and small motor drives.
- **Function**: Provide stable power supply, support complex control logic, and adapt to harsh environments.
4. **Medical Equipment**
- **Scenario**: Used in portable medical instruments, monitoring equipment, physical therapy equipment, etc.
- **Function**: Ensure stable operation of equipment and ensure patient safety.
5. **Automotive Electronics**
- **Scenario**: Used in car chargers, driving recorders, car entertainment systems, etc.
- **Function**: Efficient power management to adapt to automotive voltage fluctuations.
6. **Internet of Things (IoT)**
- **Scenario**: For smart sensors, wireless communication modules, data acquisition equipment, etc.
- **Function**: Low power design, support long-term operation and remote data transmission.
7. **Consumer Electronics**
- **Scenario**: For game consoles, digital cameras, e-book readers, etc.
- **Function**: Provide stable power supply to enhance user experience.
8. **Education and R&D**
- **Scenario**: For teaching experiments, prototype development, e-sports, etc.
- **Function**: Modular design, easy for students and developers to quickly build and test.
9. **LED Lighting**
- **Scenario**: For LED light strips, landscape lighting, stage lighting, etc.
- **Function**: Efficiently drive LEDs, support dimming and color control.
10. **Security monitoring**
- **Scenario**: used for cameras, access control systems, alarms, etc.
- **Function**: Provides stable power supply, supports long-term operation and remote monitoring.
Features
1. Nominal for 12V battery charger.
2. High-efficiency & high output.
3. High transparent low-iron, tempered glass.
4. Rugged design to withstand high wind pressure, hail and snow load.
5. Aesthetic outlook.
Product Warranty
12-year warranty for materials and processing;
30-year warranty for extra linear power output.
FAQ
Q: Can I arrange personnel to stay in the factory or inspect the goods before shipment, and then pay the final payment after passing the inspection?
A: Yes, our customers often to use BV, SGS and other third-party companies to carry out on-site testing and inspection services.
Our company will fully cooperate with the third-party company, We hope to form a long-term and stable cooperative relationship in the case of customer recognition.
Besides, for the value of goods exceeding two containers, we will bear the inspection cost of the third-party company.
For some countries that need CQC certification, we will also cooperate to provide.
Q: If the solar panels have problems after 10 years, how can I apply for compensation?
A: First of all, we will provide warranty and flash test report with product barcode when we ship out, During the warranty period, you can submit the claim sheets with the flash test report and warranty, we will provide after-sales service.
