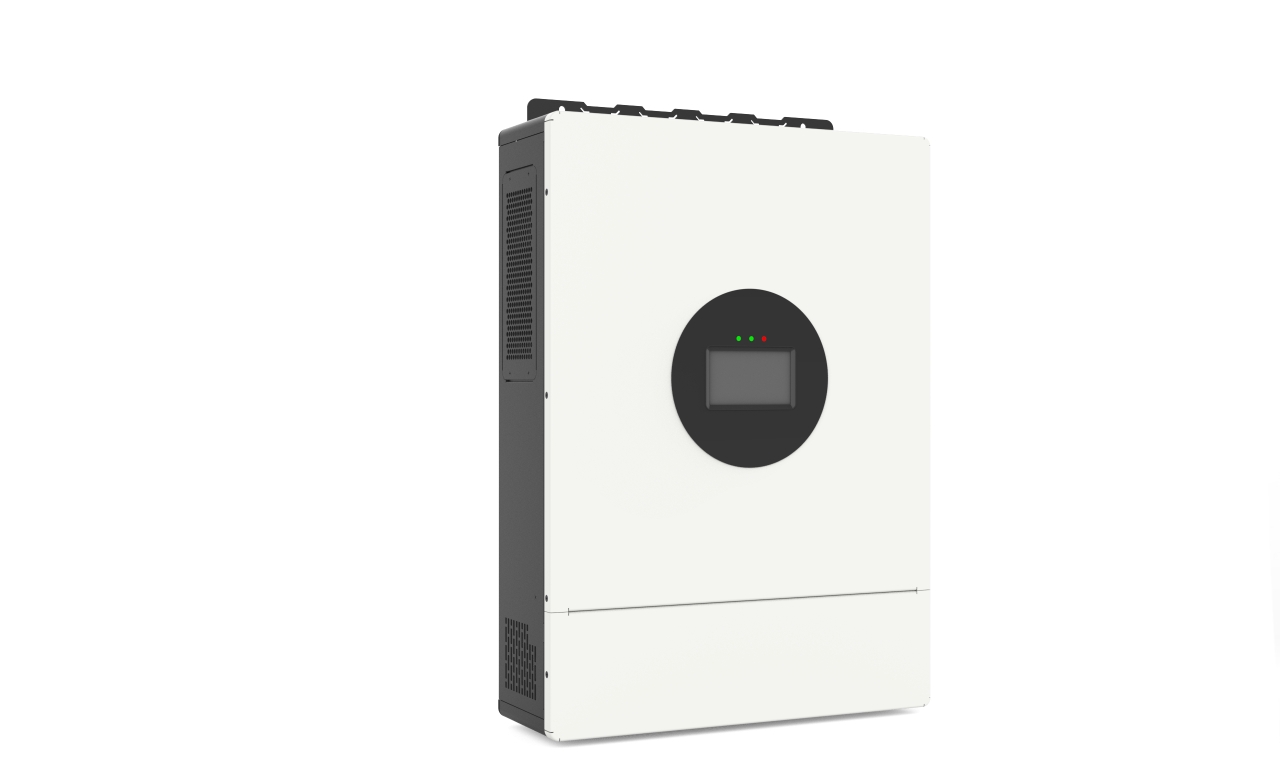

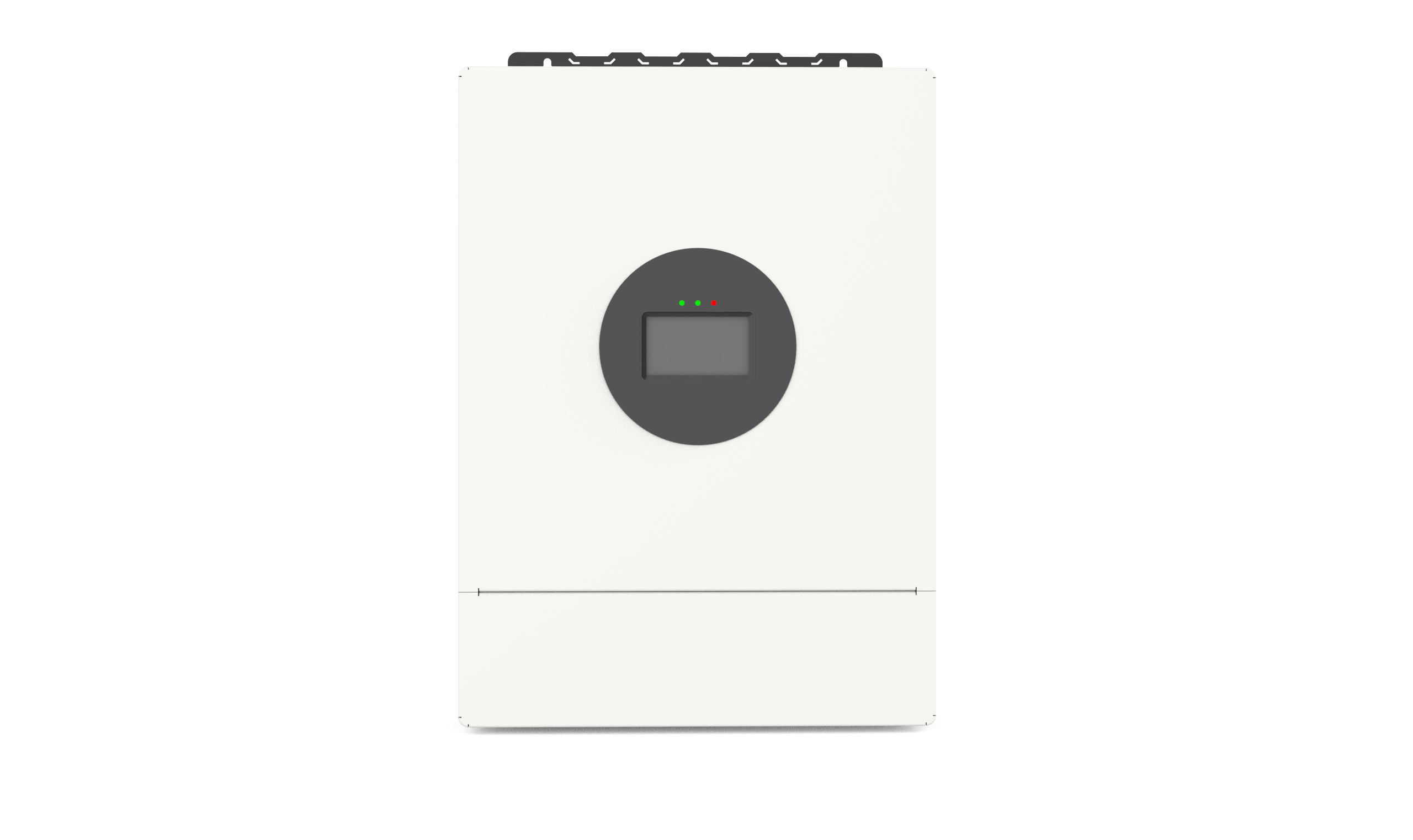

Solar Inverter 110V, 120V, 240V Split Phase Off Grid Solar Inverter Hybrid Solar Inverter 5KW~15KW

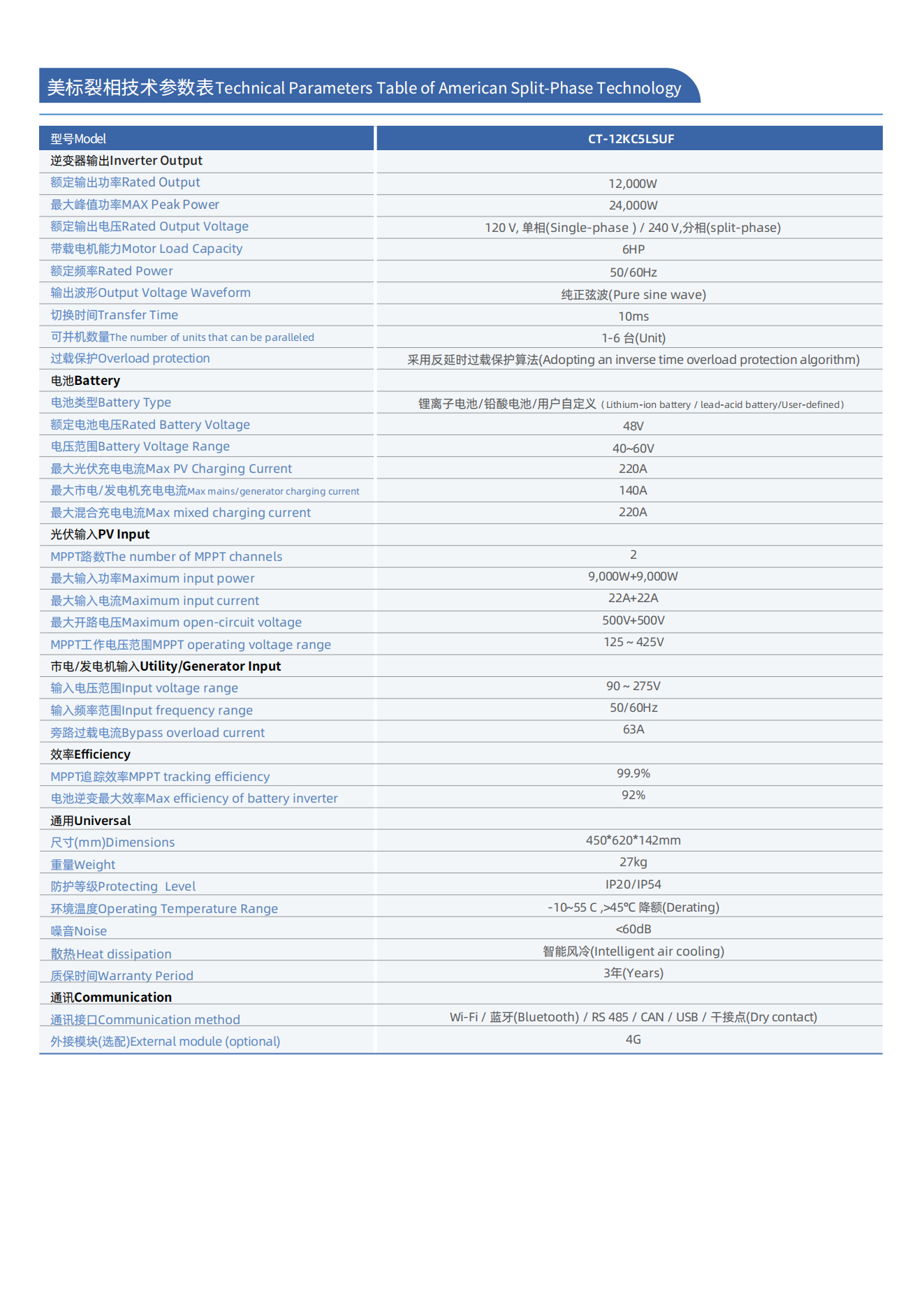

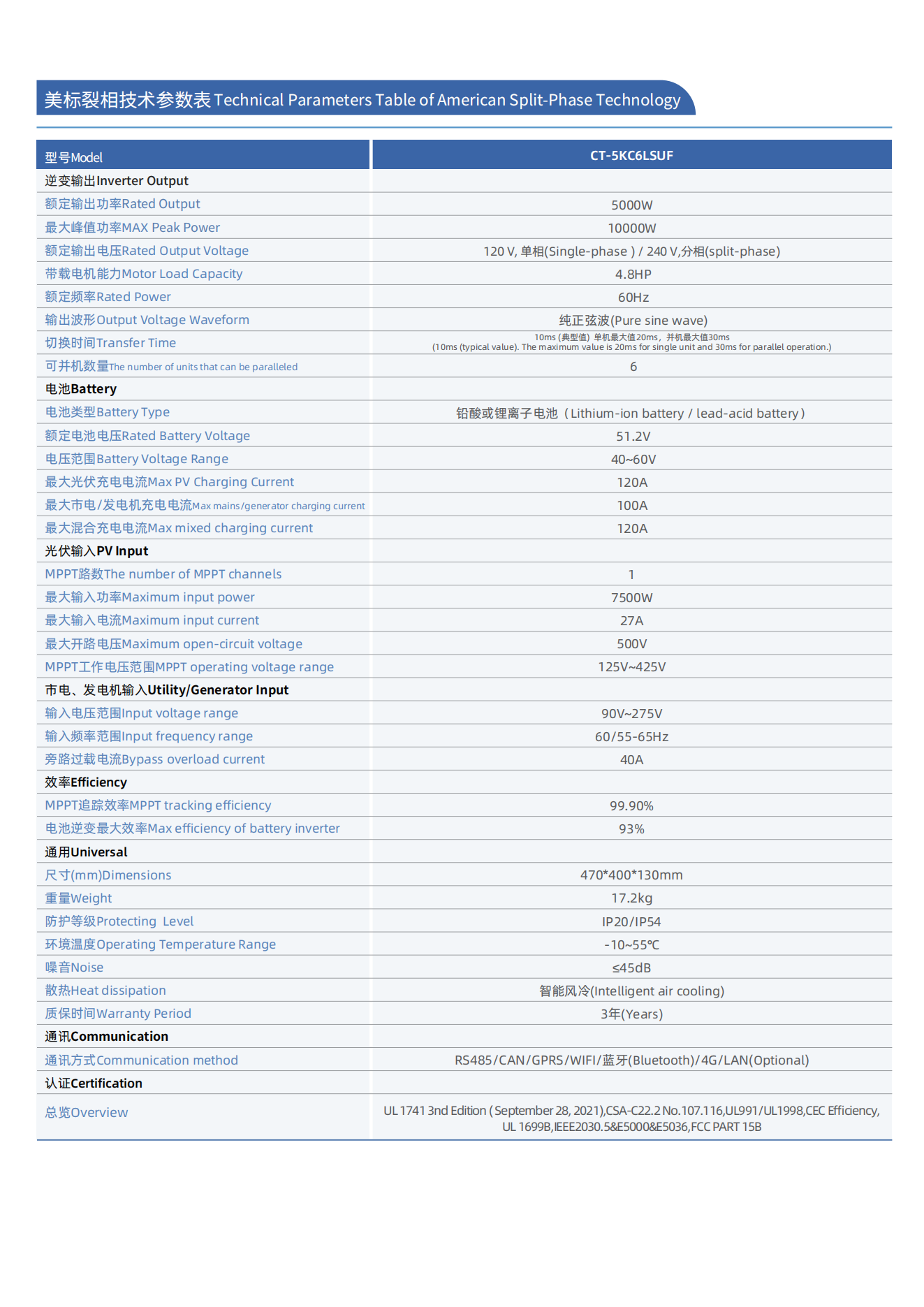

Parameter
| Series | Peak Power | Output Power | Max PV | Max PV Power | Battery Voltage |
| KE5KC5LSUF | 10KW | 5KW | 27A/500V | 7500W | 48V |
| KE6KC5LSUF | 12KW | 6KW | 27A/500V | 9000W | 48V |
| KE7KC5LSUF | 14KW | 7KW | 27A/500V | 10500W | 48V |
| KE78KC5LSUF | 16KW | 8KW | 22A/500V*2 | 12000W | 48V |
| KE10KC5LSUF | 20KW | 10KW | 22A/500V*2 | 15000W | 48V |
| KE12KC5LSUF | 24KW | 12KW | 22A/500V*2 | 18000W | 48V |
| KE15KC5LSUF | 30KW | 15KW | 22A/500V*2 | 22500W | 48V |
Features
Supports up to 6 units in parallel
MPPT tracking efficiency is as high as 99.9%
Attractive appearance, is simple to install, and is convenient to use
Comprehensive security protection from software to hardware
