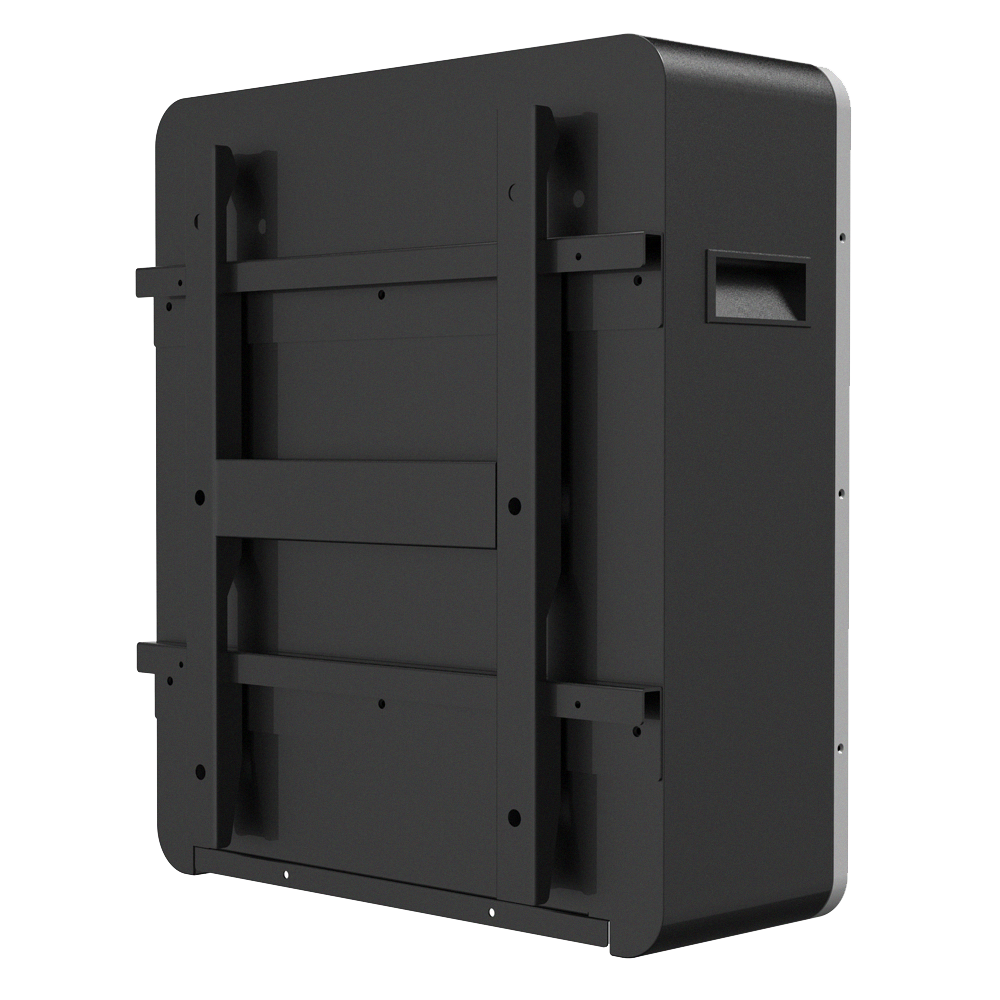

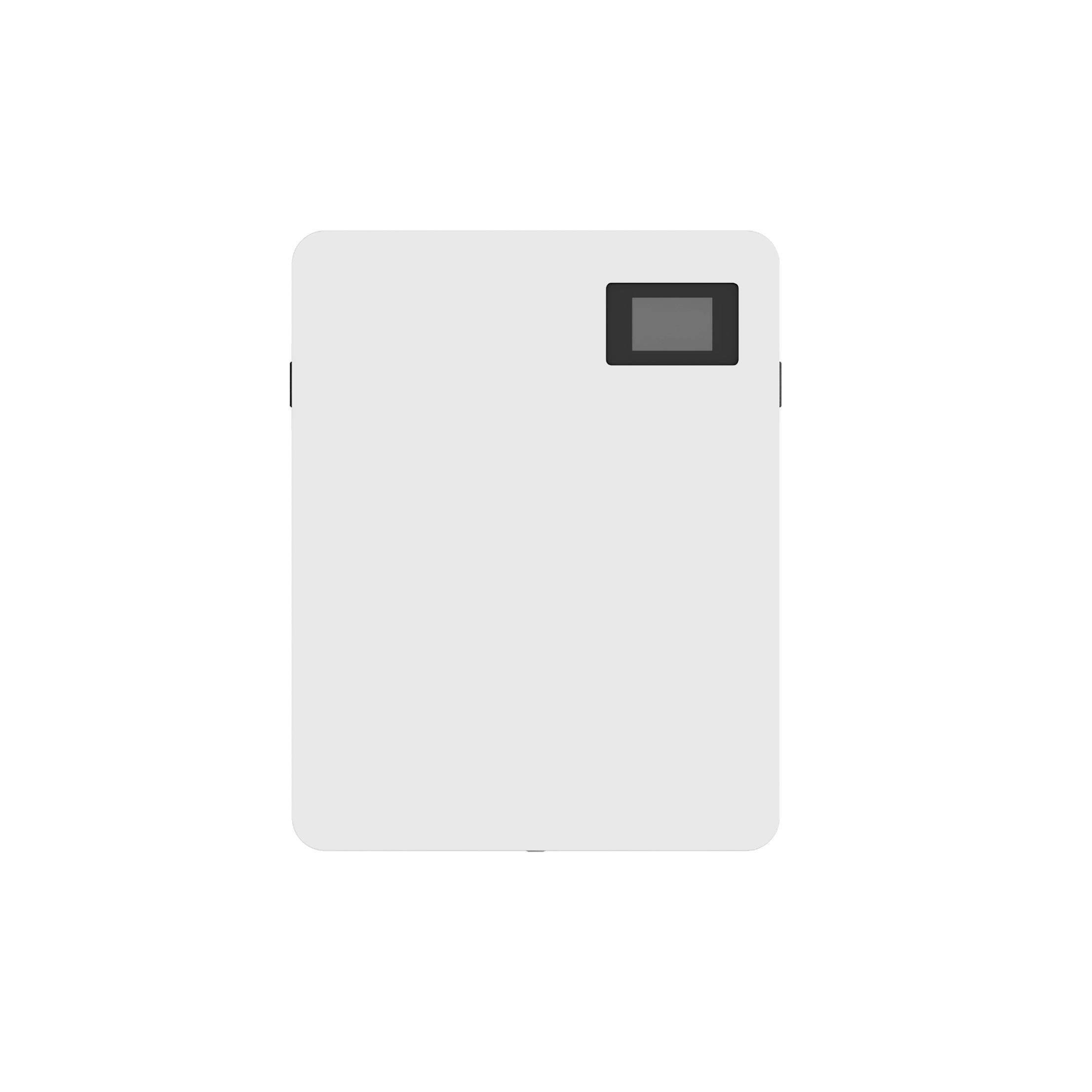

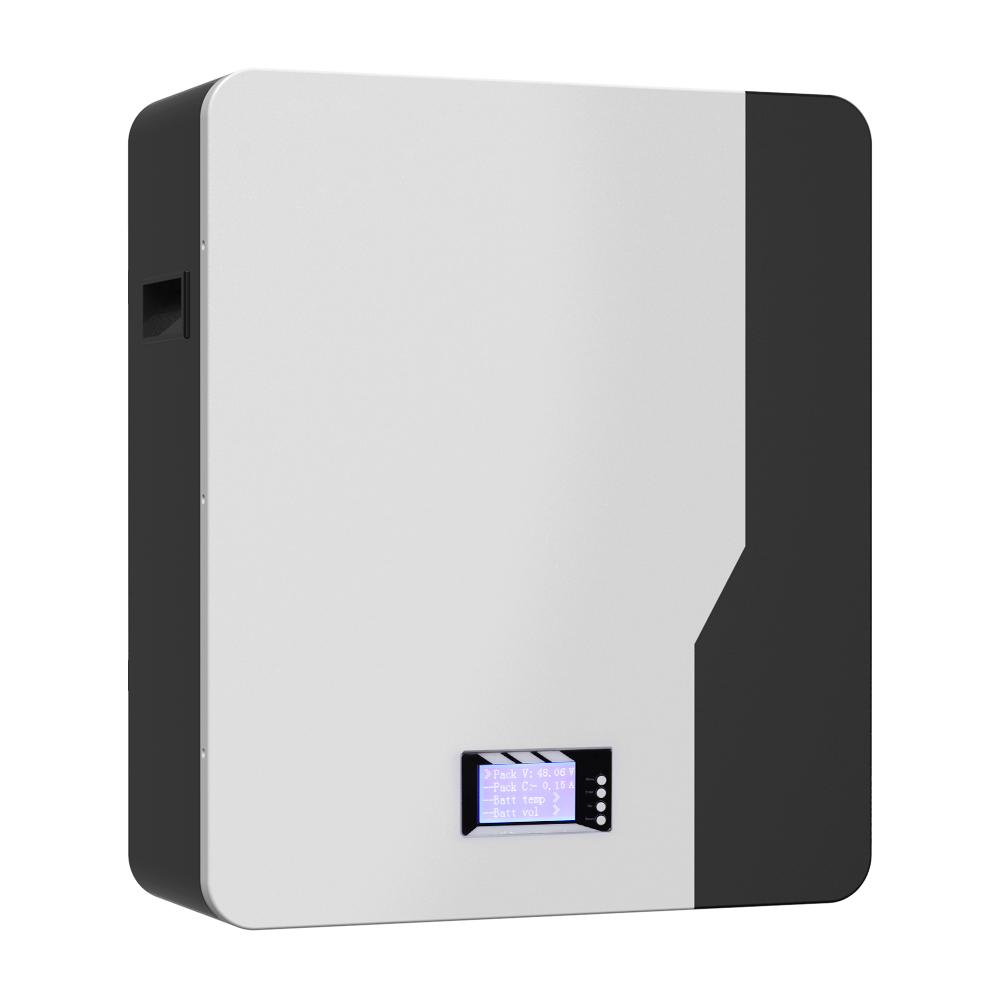

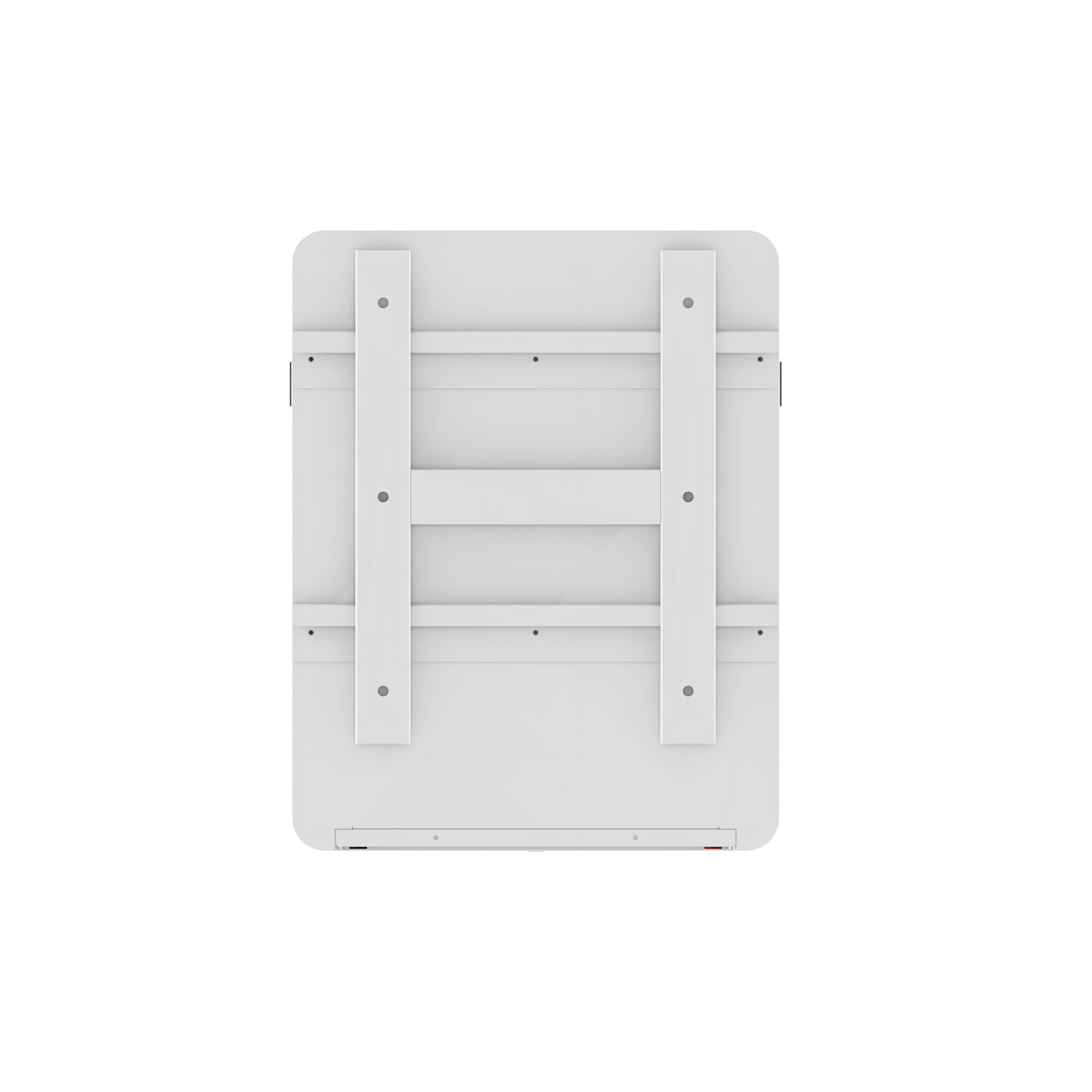

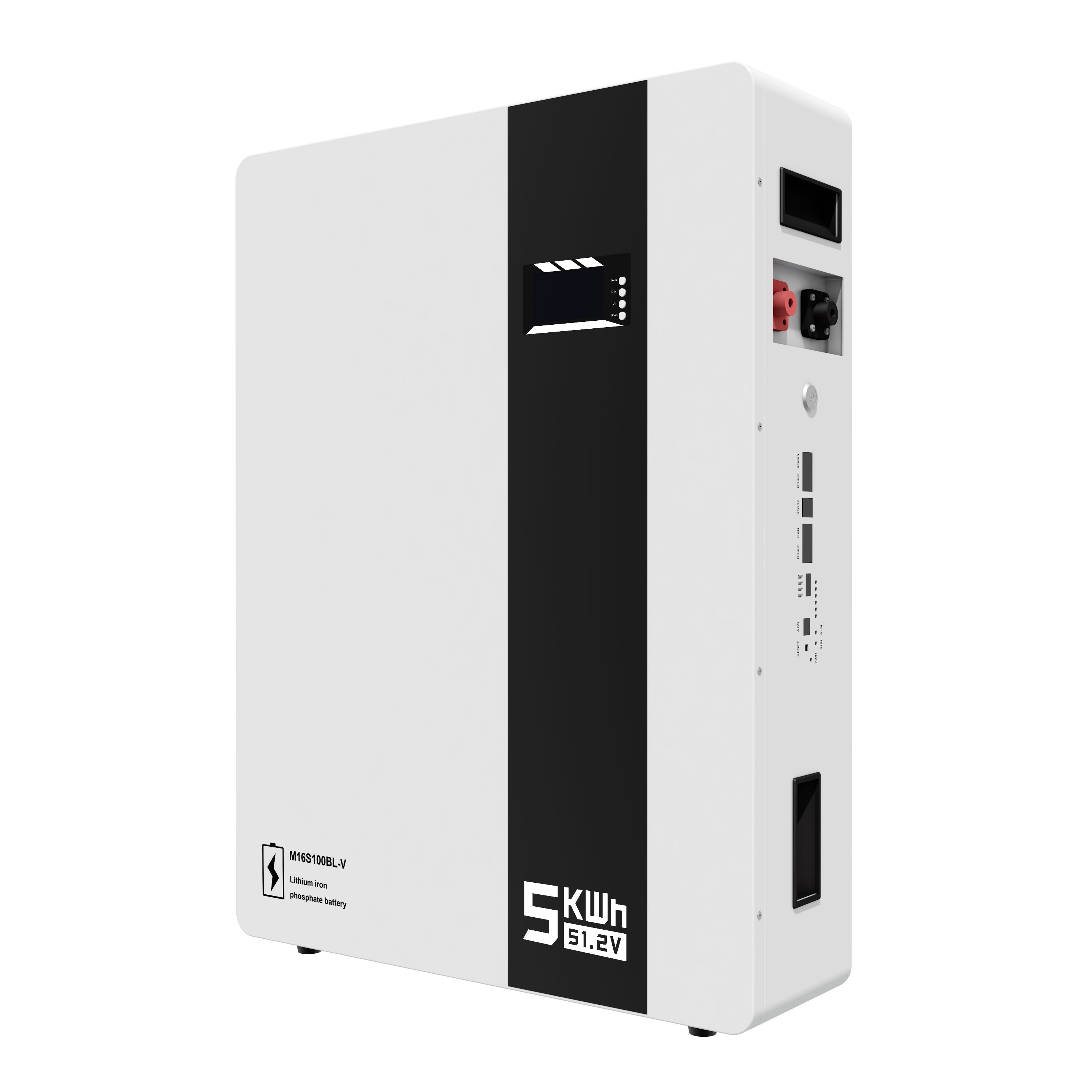

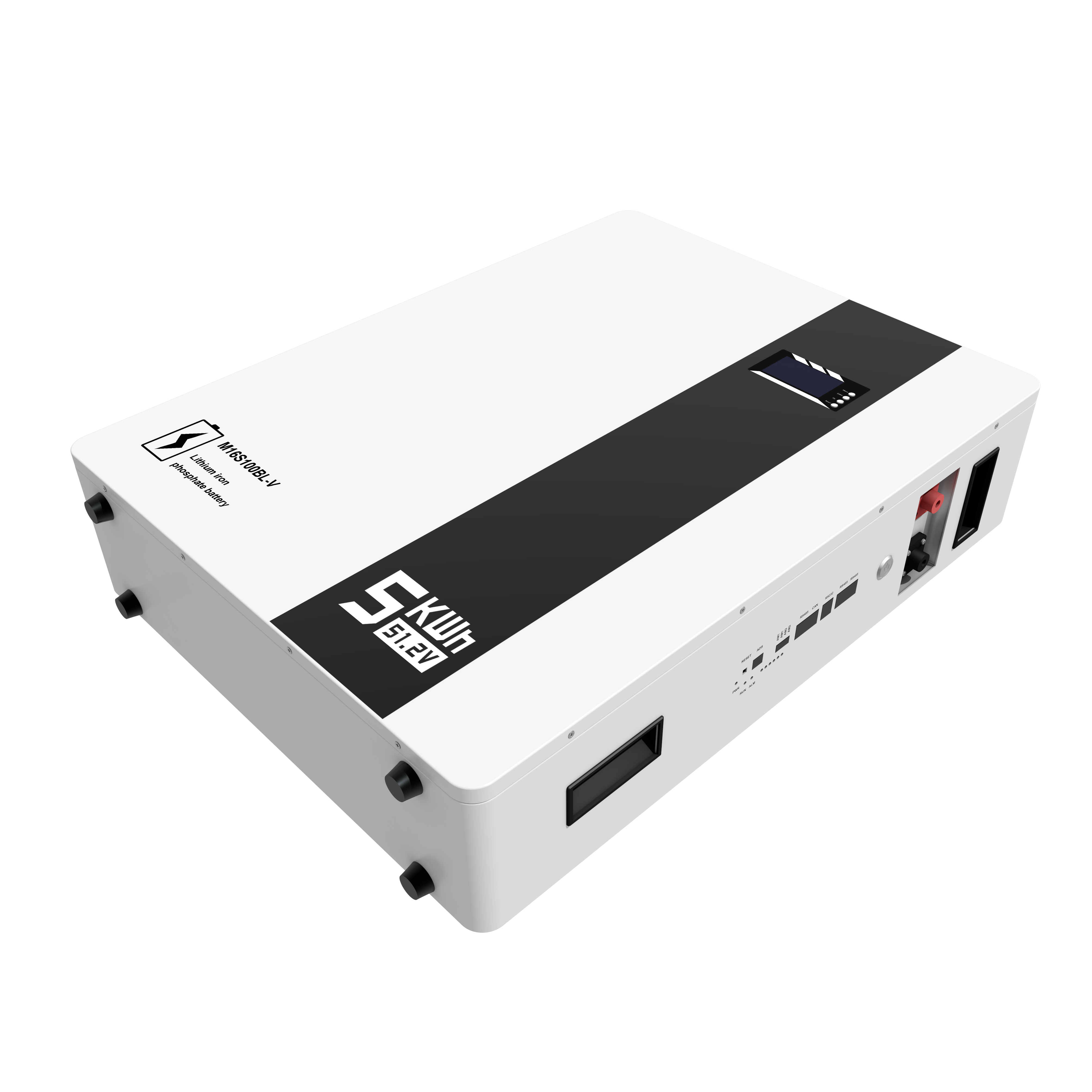

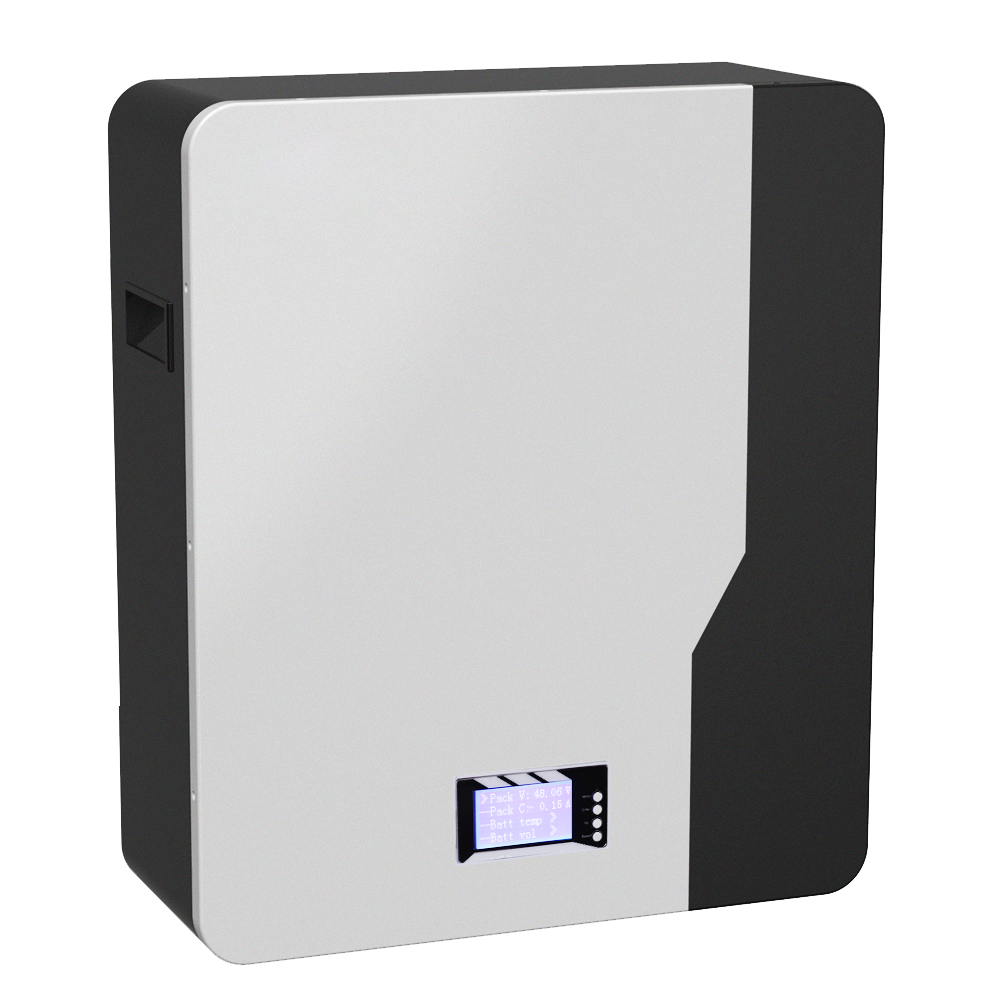

Wall Mounted 5KWH Energy Storage Lithium Battery for Home Use
Battery Features
Original Grade A lithium iron phosphate battery cell has high safety and reliabilityThe charging and discharging efficiency is high, and the number of cycles is more than 3500 times
Compatible with most inverters on the market
Supporting RS485 and CAN communication
Modular design, can be expanded at any time to increase the energy of the system
Supporting up to 15 batteries in parallel
ON/OFF switch control output
The LCD display monitors the operating status in real time
Production Description
| Product Model | M16S100BL-V2 | M16S200BL-V2 |
| Rated Energy(KWH) | 5.12 | 10.24 |
| Rated Voltage(V) | 51.2 | 51.2 |
| Standard Charge Current(A) | 20 | 40 |
| Maximum Charging Current(A) | 100 | 100 |
| Maximum Disharging Current(A) | 100 | 100 |
| Features | ||
| Cycle Life | ≥ 3500 times @ 80% DOD, 25 °C | ≥ 3500 times @ 80% DOD, 25 °C |
| Methods Of Communication | RS232/RS485/CAN | RS232/RS485/CAN |
| Conventional | ||
| Packing Dimensions (L×W×Hmm) | 525×340×645 | 595×316×755 |
| Gross Weight (Kg) | 50 | 98 |
FIELDS OFAPPLICATION
Wall-Mounted Energy Storage LiFeP4 Battery, and the main use areas are as follows:
Standby power
Machine shop
Home energy storage
Solar storage ...
